Plastic Collapsible Crate
The color of plastic collapsible crate are blue, other colors such as red, yellow,green and black can also be customized. Adapt to the ambient temperature:-25°C to +60"Clt has the advantages of light weight, less space, andconvenient assembly. At present, the plastic crate has been widely used in closed-loop distribution systems such as 24-hour convenience stores, largedistribution centers, department stores, light industry, clothing, homeappliances, and food processing, etc. The size error of the plastic collapsible crate is about 3%, the weight error side wall deformation rate is <1%, the bottomplane deformation of the plastic crate is <5mm, and the diagonal change rate of the box body is <1%, which are all within the range allowed by the enterprise standard.
Plastic Collapsible Crate Parameter | |||||
Product Name | Ext. Size (mm) | Folding Size (mm) | Load Bearing (kg) | Weight (kg) | Model |
EU Folded Basket | 600x400x280 | 600x400x85 | 20 | 2.5 | EU604028W |
Mesh Folded Basket | 600x400x240 | 600x400x70 | 15 | 1.88 | KK604024W-1 |
Mesh Folded Basket | 600x400x280 | 600x400x72 | 15 | 2.05 | KK604028W-1 |
Mesh Folded Basket | 600x400x330 | 600x400x85 | 15 | 2.23 | KK604033W-1 |
Mesh Folded Basket | 800x580x500 | 800x580x115 | 35 | 6.22 | KK805850W |
Mesh Folded Basket | 480x350x255 | 480x350x58 | 10 | 1.24 | KK4835255W |
Mesh Folded Crate | 400x300x310 | 400x300x70 | 10 | 1.28 | XS403031 |
Mesh Folded Crate | 600x400x300 | 600x40x70 | 25 | 2.9 | XS604030W |
Mesh Folded Crate | 600x400x320 | 600x400x95 | 20 | 3.46 | XS604032C |
Mesh Folded Crate | 650x440x360 | 650x440x95 | 20 | 3.96 | XS654436C |
Mesh Folded Crate | 760x580x497 | 760x580x114 | 35 | 6.65 | XS765850W |
Mesh Folded Crate | 530x360x295 | 530x360x65 | 10 | 1.55 | XS5336295W |
Mesh Folded Crate | 600x400x185 | 600x400x85 | 10 | 2.1 | XS6040185W-1 |
Mesh Folded Crate | 600x400x345 | 600x400x85 | 25 | 2.81 | XS6040345W-8 |
Vegetable Crate | 400x300x220 | 400x300x67 | 15 | 1.29 | KB403022W |
Vegetable Crate | 535x360x312 | 535x360x65 | 20 | 2.25 | KB533631W |
Vegetable Crate | 600x400x300 | 600x400x60 | 25 | 2.5 | KB604030W |
Vegetable Crate | 600x400x340 | 600x400x60 | 30 | 3 | KB604034W |
Vegetable Crate | 600x50x340 | 600x500x65 | 25 | 3.19 | KB605034W |
Vegetable Crate | 1000x400x340 | 1000x400x75 | 150 | 5.12 | KB1004034C |
Vegetable Crate | 600x400x220 | 600x400x48 | 15 | 1.59 | KN604022W-Q |
Vegetable Crate | 600x400x170 | 600x400x38 | 15 | 1.66 | TY604015W |
Vegetable Crate | 600x400x260 | 600x400x38 | 15 | 2.17 | TY604025W |
Plastic Collapsible Crate’s Advantages
New impact-resistant HDPE/PP material production. Strong, thick, environmentally friendly, odorless and durable.

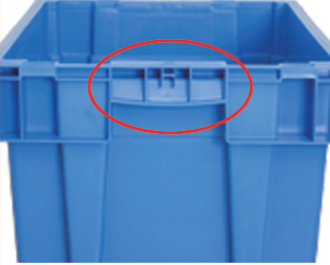

Handle Design
Ergonomically designed, comfortable and easy to carry.
Rib Design

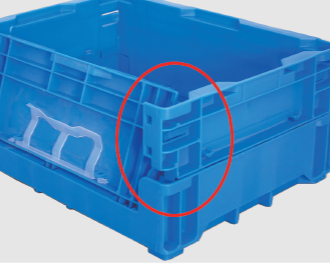

The overall design of ribs is used to enhance the bearing capacity of the box and make the box last longer.

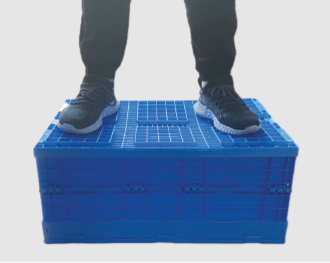

Super loading capacity, durable, strong and thick, not easy to deform.

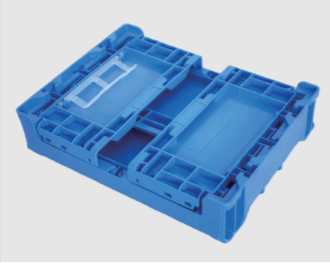

Folded Design
The folding design of some models is easy to fold, convenient for storage and transportation, and can be stacked in any staggered way.

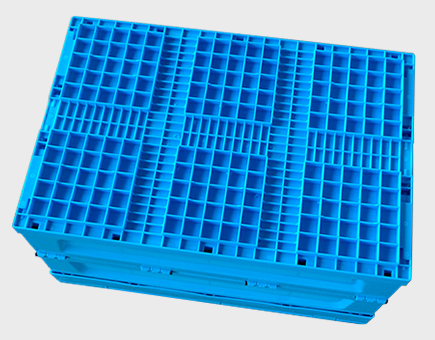

Reinforce the Bottom
Add vertical and horizontal ribs to strengthen the bottom.

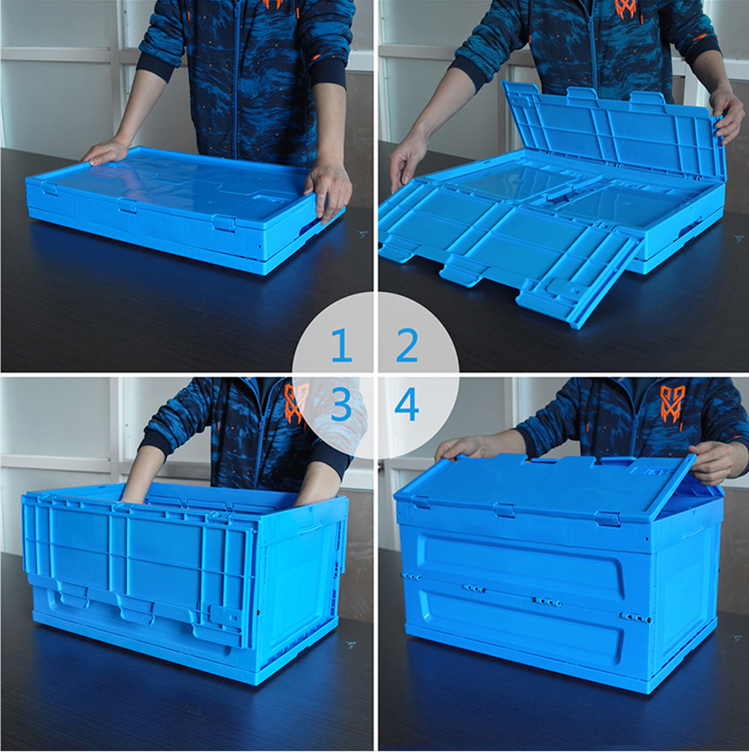

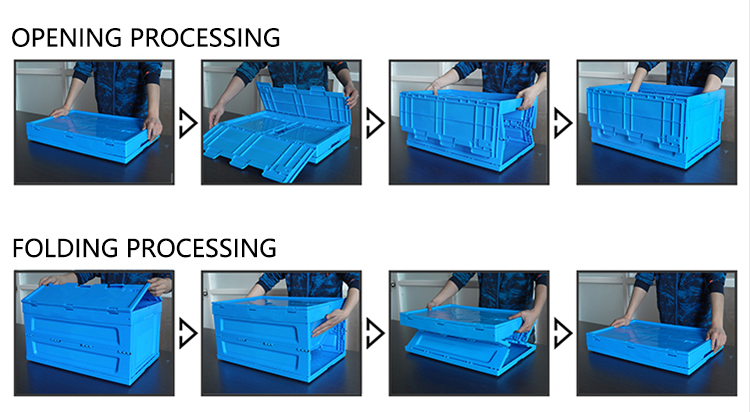

How to install plastic collapsible crate
